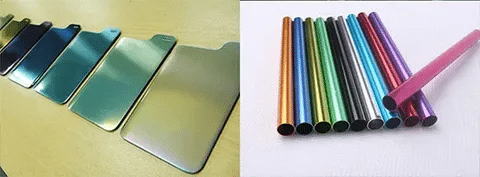

As you pick up your smartphone, look at the smooth finish on car parts, or on the wear-resistant finish on aircraft, you are probably looking at anodized surfaces. This is an electrochemical process that converts the normal metals into corrosion-resistant, colorful, and very strong materials that drive a myriad of industries across the globe. As an engineer, designer, or as a mere onlooker of the manufacturing game, having the knowledge of the anodizing process will provide you with a knowledgeable insight into one of the most flexible surface finishing methods in the modern world.
What Is Anodizing? (The Basics)
The procedure is called electrochemical Anodizing, which forms a protective layer of oxides on metal, mainly on aluminum. Under this type of controlled oxidation process, the metal component takes the form of the anode (positive electrode) in an electrolytic bath, with electrical current passing to an acidic solution to produce a porous, high-durability oxide coating.
Laid on top of the metal, as in painting or plating, anodizing does not place an additional metal over the base–in fact, it transforms the surface metal itself into an oxide layer. This very difference has several major benefits:
- High-quality corrosion resistance against rust and cracks.
- Increased durability of the surface, resistant to wear and other pressures of the environment.
- The porous structure of the oxide provides better adhesive bonding and paint.
- Good cosmetic looks and choices on colours and finishes.
- Electronic applications for electrical insulation.
Core Types of Anodizing
Knowing the various types of anodizing will enable you to select the appropriate process to use on your occasion. All of the types implement varying electrolytes and operating conditions to avert the peculiarities of each.
Type I Anodizing (Chromic Acid Process)
Anodizing Type I In this method, chromic acid is used as the electrolyte to form the thinnest oxide layers (usually 0.00002-0.0001 inches). This legacy process has been developed originally to be used in aerospace and proposes:
- High-quality corrosion protection with the least amount of dimensional change.
- The stressed component has good fatigue resistance.
- Health-related environmental issues as a result of the application of hexavalent chromium.
- Poor choice of the color (usually a gray-green look).
Type II Anodizing (Sulfuric Acid Process)
Type II is the most widespread anodizing technique, whereby sulfuric acid is used to form the oxide layers of 0.0002-0.001 thickness. This is a flexible approach that offers:
- Large selection of colors with dye absorption.
- Optimal combination of corrosion resistance and economy.
- Good to use in decoration and functionality.
- Will fit most alloys of aluminum.
Type III Anodizing (Hardcoat Process)
Also called hard anodizing, Type III develops the most massive oxide coatings (0.0005-0.003 inches) with the help of sulfuric acid, at lower temperatures and greater voltages:
- Excellent wear resistance and hardness (to 70 HRC)
- Awesome resistance to corrosion in severe conditions.
- Poor color selections (usually dark gray to black)
- Excellent in the case of high-stress mechanical parts.
Important Note: A vast majority of anodized parts must have a sealing in place to close out the porous oxide structure and achieve maximum corrosion resistance. The three most common techniques of sealing are hot water sealing, nickel acetate sealing, and dichromate sealing.
How Anodizing Actually Works
The step-by-step anodizing process illustrates the rationale behind the results that are so reliable with such a surface treatment:
Step 1: Pre-Treatment and Cleaning
Particles are cleaned in detail to eliminate oils, oxides, and other contaminants that may disrupt the anodizing process.
Step 2: Electrolyte Bath Immersion
The suspension of the clean parts is suspended in an acidic electrolyte solution (chromic, sulfuric, or other kinds of acid, based on the type).
Step 3: Electrical Current Application
Current is applied as direct current along the solution, with the aluminum component being the positive anode and cathodes placed around the bath.

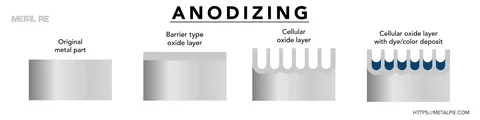

Step 4: Controlled Oxide Formation
The electrolyte oxygen atoms mix with aluminum atoms on the surface and create an oxide coating by extending the base metal.
Step 5: Sealing Process
Hot water, chemical sealants, or other means are used to close the porous oxide structure and lock in any dyes.
Technical Insight: As can be explained in the process of anodizing, anodizing is used to convert about half of the result of oxide thickness on the base material, which is why such anodizing offers the best adhesion possible, and the coating cannot be peeled or flaked away.
Benefits & Applications
Durability and Corrosion Resistance
Odinated surfaces are much more resistant to corrosion than bare aluminum, and are used:
- Exterior architecture.
- Marine fittings and marine hardware.
- Carmotive trim and parts.
- Electronic enclosures
Aesthetic Benefits

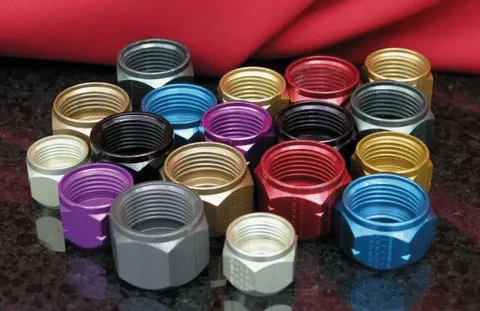

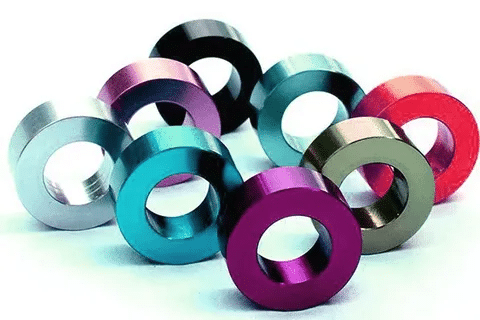

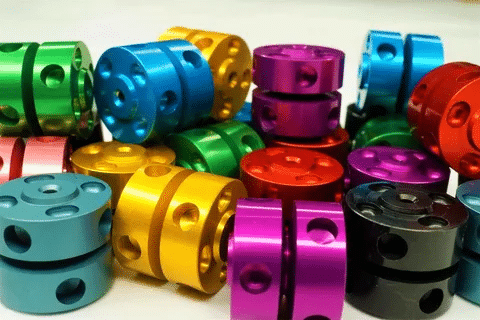

The porous oxide structure is easily receptive to dyes, which facilitates:
- Even color in large quantities of production.
- Durable, fading-resistant finishes.
- Different surface finishes from matte to bright.
- Brand matching in custom color.

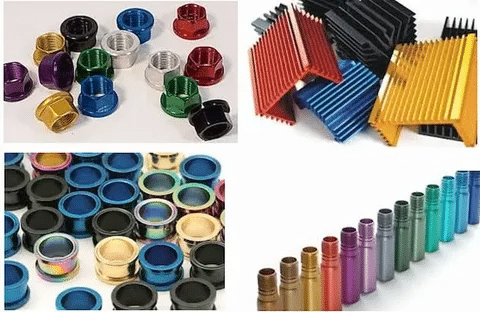

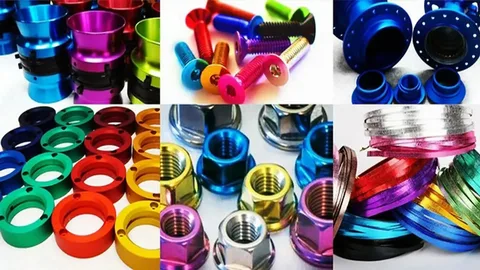

Industry Applications

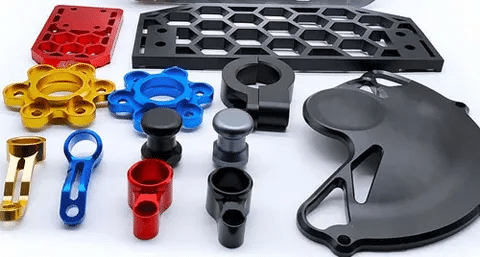

Automotive Industry: Anodized parts find use in wheel finishes, trim parts, and under-hood parts, where corrosion strength is needed that satisfies aesthetics.
Aerospace Sector: Type I and Type III anodizing is used on critical parts to save weight, where environmental considerations are taken into account.
Consumer Electronics Smartphone cases, laptop bodies, and electronic enclosures Smartphone cases, laptop bodies, and electronic enclosures can take advantage of the electrical insulation of anodizing and their appealing look.
Medical Devices: Biocompatible anodized surfaces offer corrosion resistance to challenging health care conditions.
Limitations & Design Considerations
Dimensional Changes in the Anodizing Process
Anodizing provides a thickness that is measurable in parts, which must be carefully considered during design:
- Type II corresponds to 0.0001-0.0005 in/surface.
- Type III may deposit 0.00025- 0.0015 inches per surface.
- Critical dimensions may require post-anodizing machining.
Material Limitations
Anodizing is versatile, but is most effective with metals:
- Aluminum alloys: The majority of alloys are anodizing responsive.
- Titanium: It produces decorative oxide layers that are thin.
- Magnesium: It needs special procedures.
- Steel and other metals: Not usually suitable for conventional anodizing.
Wear Resistance Considerations
Even hard anodized surfaces are brittle:
- Type II anodizing gives medium wear resistance.
- Hardcoat anodizing (Type III) is better in wear protection.
- Beneath extreme mechanical stress, surface cracking can take place.
Choosing the Right Process for Your Needs
| Feature | Type II (Standard) | Type III (Hardcoat) |
| Thickness | 0.0002-0.001″ | 0.0005-0.003″ |
| Hardness | 25-45 HRC | 55-70 HRC |
| Color Options | Excellent | Limited |
| Corrosion Resistance | Good | Excellent |
| Cost | Lower | Higher |
| Best Applications | Decorative, moderate-duty | High-wear, harsh environments |
Selection Guide:
- Select Type II when using it in decorative, electronic, enclosures, and moderate-duty applications.
- Use Type III in high-wear situations, cutting tools, and extended exposure to an extreme environment.
- Use Type I in special aerospace applications with very high weight considerations.
Frequently Asked Questions
Which metals can be anodized?
Aluminum and its alloys are the best respondents to anodizing, and titanium and magnesium are also appropriate in specialized processes. Alternative surface treatments are normally applied to steel, copper, and brass.
Do all anodized parts need sealing?
The anodized components are usually sealed, as this improves corrosion protection and fixes dyes. Nevertheless, other applications can omit sealing to retain the porous structure to meet selected bonding needs.
How much thickness does anodizing add?
Standard anodizing (Type II) will add 0.0002-0.001 inches of total thickness, and hardcoat anodizing (Type III) can add 0.0005-0.003 inches. About one half this thickness is due to the conversion of base aluminum.
Can anodized parts be machined after processing?
Yes, however, machining exfoliates the protective oxide coating on cut regions, which might need re-anodizing or other forms of protection to the exposed parts.
How long does anodizing last?
Having the right anodized and sealed components can persist in normal conditions for a few decades. Hardcoat anodizing offers even greater service life in tough service.
Conclusion
A controlled electrochemical process converts regular aluminum to a high-grade material with improved corrosion resistance, good appearance, and better durability; a process known as electrolysis. Do you require the flexibility of color of Type II anodizing, the wear resistance of hardcoat anodizing, or the unique traits of chromic acid anodizing? Knowing these differences will assist you in making knowledgeable choices about which to use in your individual applications. The anodizing review described in this guide underlines why this time-worn surface treatment is still a requirement in all sectors of aerospace through consumer electronics, providing stable operations that fulfill both operational and cosmetic demands.
