Common Tolerance Issues in Mold Components

Mold frame B board diagram showing row position groove and alignment reference for tolerance control

Share

Table of Contents

Use of tolerances in mold parts is common due to the nature of manufacturing processes, which create variations in nature, with such slight variations, which during assembly and operations, tend to multiply and cause systemwide malfunctions. They are often mistakenly diagnosed as either molding or process-related due to the symptoms such as flash or warpage being observed during run which hides their cause in component errors. It is common to believe that many problems with mold tolerance are caused during the molding stage, when in actual sense they could be as a result of component level errors.

The majority of tolerance-based mold failure are component based, and the issues manifest long before the actual molding or assembly issues. Problems with tolerances of components of the mold undermine the stability of the mold even when the component dimensions seem to be within spec. Based on long experience in tooling quality audits, I have discovered that by addressing these in the specification and verification of the components, the cascading failures in production can be avoided and reliable performance can be maintained in precision component tolerances in molding.

Why Mold Component Tolerances Matter More Than Most Teams Realize

Mold component tolerances have a direct effect on the ability of constituent parts to fit and operate in relation to each other, and determine the overall behavior of the molds under the pressure of injection cycles. Minor cases cause imbalance in alignment, causing wear or pressure imbalances that increase with time.

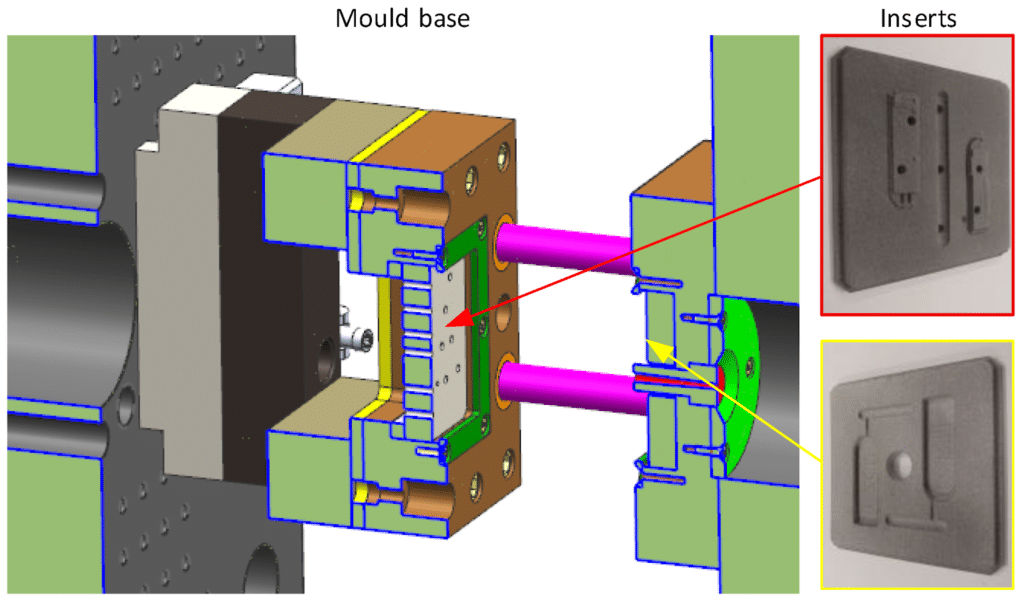

Injection mold base and insert assembly showing alignment and fit tolerance relationships between mould base and inserts

Relationship Between Component Fit and Mold Behavior

Minor errors at the component level have disproportionate system impacts since they compound, such as a 0.01 mm error in a guide pin may not appear big but can lead to incremental misalignment to produce flash or distortion (partly) on thousands of shots.

Small Deviations and Large System Effects

To counter this, it is important to concentrate on precision mold component manufacturing so that the component fits in immediately and no tolerance issues of mold components as usually felt is encountered.

Typical Tolerance Issues Found in Mold Components

Positional or dimensional variances that inhibit fit and functionality are the most common tolerance problems in mold components, and are usually not detected until the entire assembly or production is complete. Guide pin and bushing misalignment e.g. occurs due to positional tolerances failing to be held during machining resulting in binding or uneven movement.

Guide Pin and Bushing Misalignment

Insert fit variation This is where resin can leak out or wear out faster due to undersized or over size inserts that do not fit in the proper location. Corecorecavity mismatch This is due to dimensional incompatible behavior which does not allow uniform closure even between cores resulting in parting line defects.

Insert Fit Variation

Core–Cavity Mismatch

Ejector pin clearance issues, i.e. there are either too many or too few clearances, result in sticking parts or burr formation, which are not desired since they disrupt the cycle times.

Ejector Pin Clearance Problems

ComponentTypical Tolerance IssueResulting Problem
Guide pinsPositional deviationMisalignment
InsertsOversize/undersizeFlash or wear
Ejector pinsExcess clearanceBurrs, sticking

This table outlines key issues, highlighting how they manifest in mold component fit issues.

How Tolerance Stack-Up Causes Mold-Level Failures

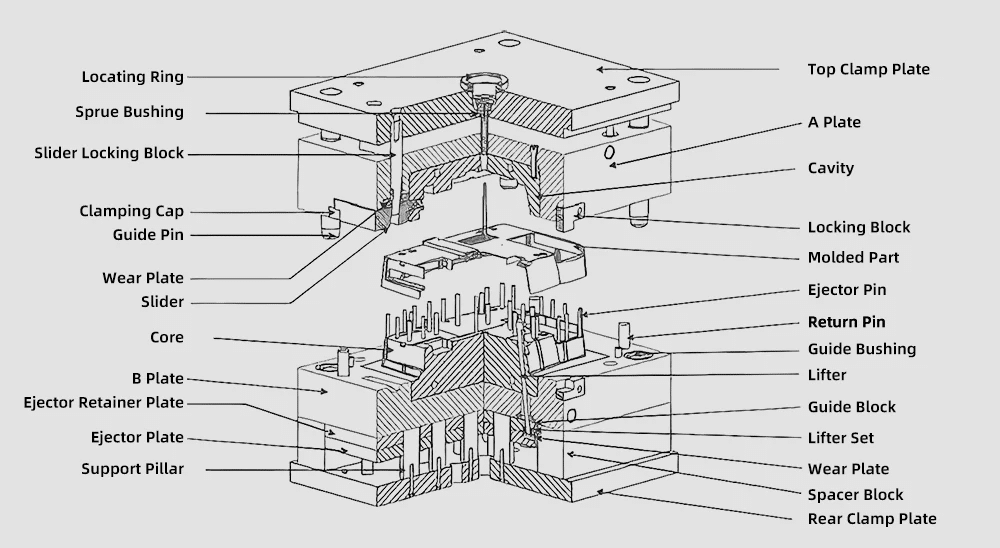

Injection mold structure diagram showing core, cavity, plates, sliders, ejector system, and tolerance-critical mold components

Tolerance stack-up leads to failures at the mold level by enabling individual component tolerances to build up, and make small component tolerances into huge system variations. Individual tolerances may pass inspection on their own, but when combined e.g. in multi-cavity alignments, they are beyond operational limits.

Why Individual Tolerances Accumulate

The distinction between part level tolerance (single component checks) and system-level tolerance (assembled performance) is vital with the latter considering interactions such as thermal expansion or assembly forces.

Part-Level vs. System-Level Tolerance

An awareness of essential tolerances key tolerances in precision mold manufacturing  in the manufacturing of precision molds, will be helpful in predicting and avoiding such stacks in tolerance stack-up within molds.

Precision Mold Making as the Foundation for Component Accuracy

Precision mold making defines the accuracy of the components by focusing on the control of the system in the entire system where each stage of the design to assembly reduces the variances to an absolute minimum. This is a method more than mere machining since it involves strict verification to make it reproducible.

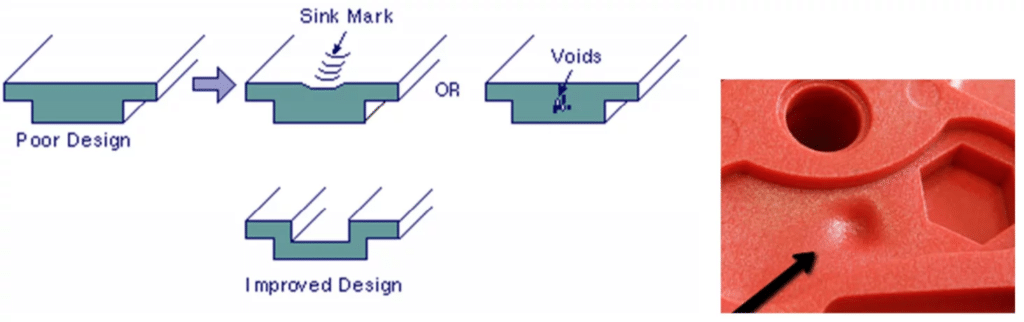

Injection mold design tolerance issues causing sink marks and internal voids in molded parts

Precision Mold Making and System Control

Inspect and assembly discipline are important, whereby tools such as CMM are used to identify deviations at an early stage, and standardized procedures are used to ensure fits.

Role of Inspection and Assembly Discipline

Understanding precision mold making fundamentals  making highlights the importance of considering the entire picture of mold assembly tolerance issues avoidance.

Machining Accuracy Limits and Their Impact on Mold Components

Machining accuracy limits affect the component of mold because they establish the margin between the possible accuracy and the realistic repeatability where nominal accuracy (theoretical specifications) is different than repeatable accuracy (reliable results under factory conditions). Ignoring these limits in the specification process results in incompatible elements that do not work when put together.

Nominal vs. Repeatable Machining Accuracy

Tolerance specs should be advised by machining limits because overloading capabilities such as requesting sub-micron finishes on large areas is a source of more defecting due to tool wear or vibration.

Machining Limits in Tolerance Specification

It is important to understand the performance of CNC machining accuracy limits  accuracy to make realistic expectations on precision mold component tolerances.

ProcessTypical CapabilityRisk if Over-Specified
CNC milling±0.01–0.02 mmRework
EDM±0.005–0.01 mmInstability
Grinding±0.002–0.005 mmCost escalation

This table shows the capabilities and risks and makes more effective decisions in order to avoid the typical tolerance problems in mold parts.

How Mold Component Tolerance Issues Affect Part Consistency

Mold base, precision plates, mold parts, and measurement systems used in tight tolerance mold component manufacturing
This overview shows mold bases, precision-machined plates, standard mold parts, and measuring systems used to control tolerances throughout mold component manufacturing and assembly.

Part consistency is compromised by the mold component tolerance problems that create instabilities that create dimensional or cosmetic variation in the molded products. Stability of components, e.g. loose fits, is converted to imbalance in pressure, which causes warping or futile cavities.

Component Instability to Part Variation

The mismatch of the repeatability increases with time as the tolerances are aggravated by wear to become significant defects.

Inconsistency Increasing Over Time

This brings to focus the part inconsistency  tolerance-related part inconsistency that is related to tolerance as a direct result of the untreated component issues.

How to Identify Tolerance Problems in Existing Molds

The detection of tolerance issues of already existing molds will be conducted by looking at check indicators such as dimensional deviations in CMM reports or presence of unaccounted assembly gaps. Evidence of chronic problems is in wear patterns, including non-even polishing of guides.

Inspection Indicators

Symptoms that are sometimes confused with process issues such as unreliable cycle times are actually caused by component tolerances which can only be verified through disassembly.

Wear Patterns

Symptoms Mistaken for Process Issues

SymptomLikely Cause
Flash variationInsert fit tolerance
Dimensional driftGuide system wear
Ejection inconsistencyPin clearance

This tabular information is a correlation of the symptoms with the cause which helps in the diagnosis of the mold component tolerance issues.

Preventing Tolerance Issues in Mold Component Design and Sourcing

The prevention of tolerance problems begins with the specification of functional tolerance, in which the specifications are based on the actual requirements and not the generic tightness. Selection of suppliers can be done in such a way that there is alignment between the ability of the suppliers and the ability to provide consistency.

Functional Tolerance Specification

Problem is caught early through inspection planning including in-process checks.

Supplier Capability Alignment

Importance of Inspection Planning

The steps are used to reinforce against the failures of mold assemblies.

Common Misunderstandings About Mold Component Tolerances

One of the misconceptions is that the components in spec are always perfectly fitting without the consideration of other factors in reality such as temperature that influences assembly. Stricter tolerances are perceived as a magic potion, but they may also bring in the emerging risks such as brittle.

Components Within Spec Always Fit Myth

Early assembly is not long-term valid, because wear unveils concealed variances with recurrences.

Tighter Tolerance Fixes All Issues

Initial Assembly Proves Long-Term Accuracy

Explaining these avoids failure in tolerance stack-up in molds.

Conclusion — Mold Stability Starts at the Component Level

To conclude, stable molds are based on the carefully balanced elements, in which the tolerance control starts with realistic specifications and goes down to verification to guarantee the systems are free of errors. The component-first approach changes the mindset to preventive engineering and the reduction of failures and an increase in reliability. The ability to consider tolerances as interdependent and not independent allows toolmakers to create molds that can be relied upon to perform even in extreme circumstances.
